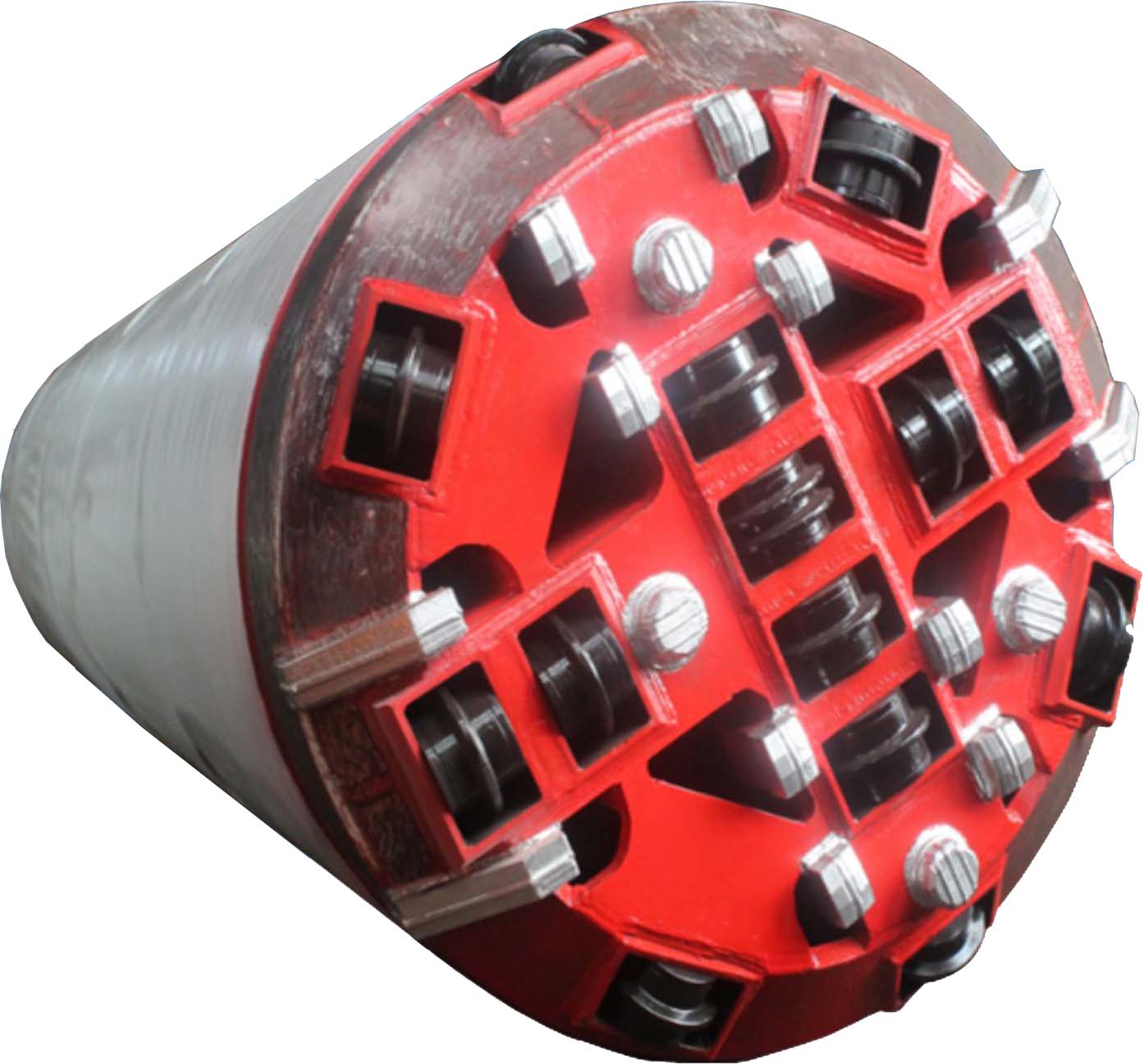

Tunnel Boring Machines (TBM)
Together with a tunnel engineering expert company from Shanghai, China, who has invested heavily in:
a. Research studies through strong collaboration with local tunnelling companies since 1980's;
b. Machine design improvements and engineering recommendations;
c. Tendered and completed numerous China Tunnel-Boring Projects;
this specialist company has moved on to manufacture slurry balanced machines, or commonly known as tunnel boring machines.
Tapping on their expertise, we hope to contribute actively in the "No-Dig" industry within south-east Asia, and bring forth a breakthrough in product-quality, service and price to all our clients.
Types of Drilling Bits
 |
 |

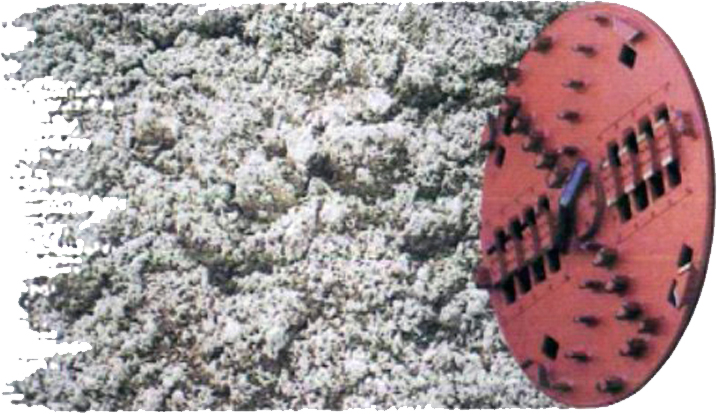

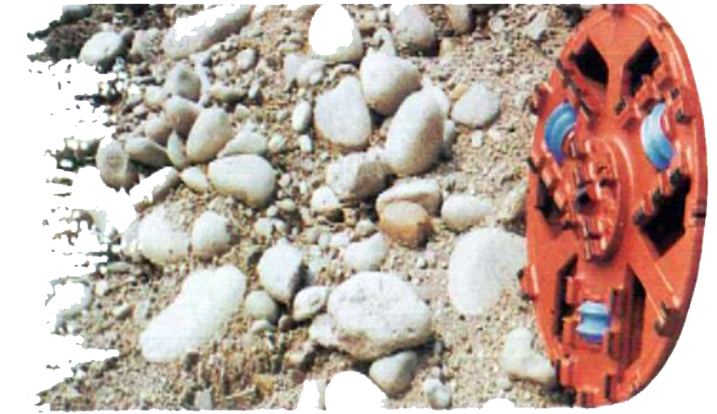

| Normal Soil / Hard Earth | Pebbles / Gravels |
 |
 |

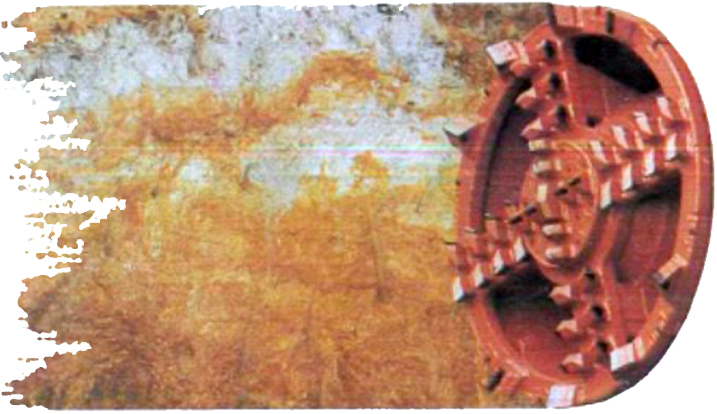

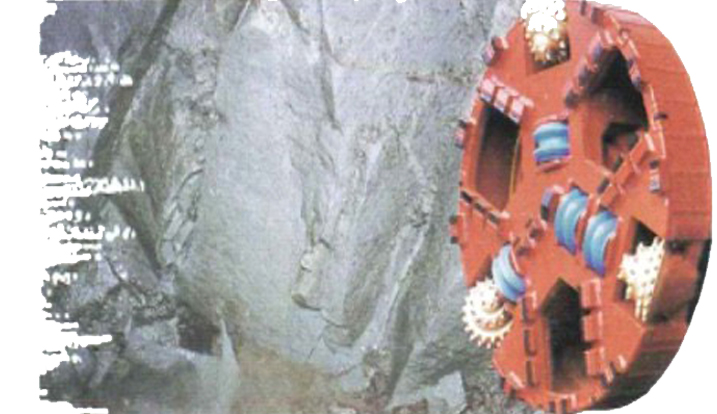

| Soft Rock | Hard Rock |
Basic Parameters
Diameter |
Power (kW) |
RPM |
Torque (t.m) |
Outer Diameter (mm) |
Control |
Ø800 |
15 |
4.90 |
3.0 |
Ø980 x 3600 |
Remote - Wired |
Ø1000 |
18.5 |
3.90 |
4.5 |
Ø1220 x 3600 |
Remote – Wired |
Ø1200 |
22 |
3.80 |
6.5 |
Ø1440 x 3500 |
Remote – Wired |
Ø1350 |
15 x 2 |
3.80 |
7.6 |
Ø1640 x 3500 |
Remote – Wired |
Ø1500 |
11 x 3 |
2.55 |
12.6 |
Ø1850 x 3500 |
Remote – Wired |
Ø1650 |
22 x 2 |
2.00 |
20.0 |
Ø1980 x 3500 |
Remote – Wired |
Ø1800 |
15 x 4 |
2.00 |
36.6 |
Ø2220 x 3800 |
Remote – Wired |
Ø2000 |
15 x 4 |
1.90 |
40.0 |
Ø2420 x 3800 |
Remote – Wired |
Ø2200 |
22 x 4 |
1.80 |
42.0 |
Ø2665 x 3800 |
Remote – Wired |
Ø2400 |
22 x 4 |
1.65 |
48.0 |
Ø2905 x 3800 |
Remote – Wired |
Ø2600 |
30 x 4 |
1.60 |
65.0 |
Ø3140 x 4000 |
Remote – Wired |
Ø3000 |
30 x 4 |
1.60 |
91.0 |
Ø3650 x 4000 |
Remote – Wired |
Ø3500 |
30 x 4 |
1.50 |
130.0 |
Ø4200 x 4200 |
Remote – Wired |
Ø4000 |
37 x 6 |
1.28 |
168.0 |
Ø4640 x 4900 |
Remote – Wired |

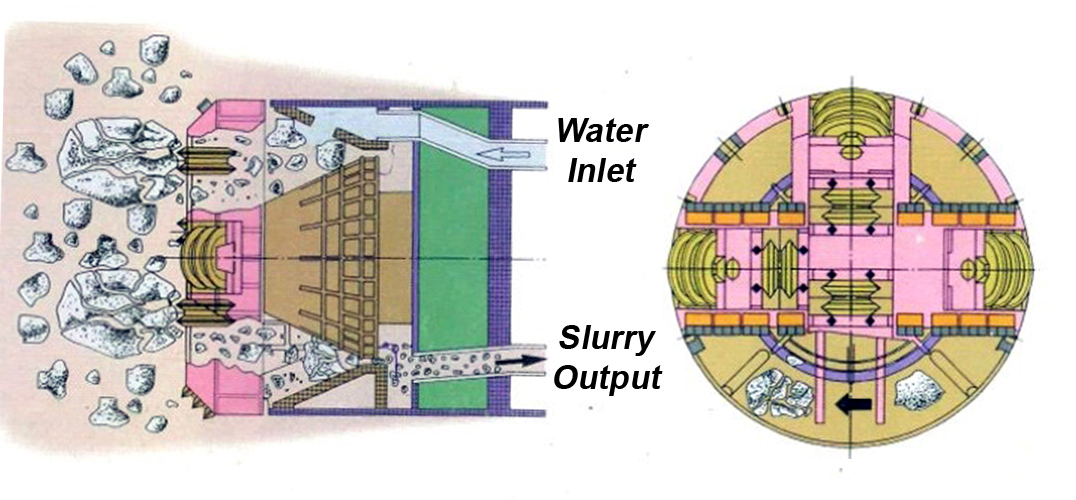

Crushing Principle

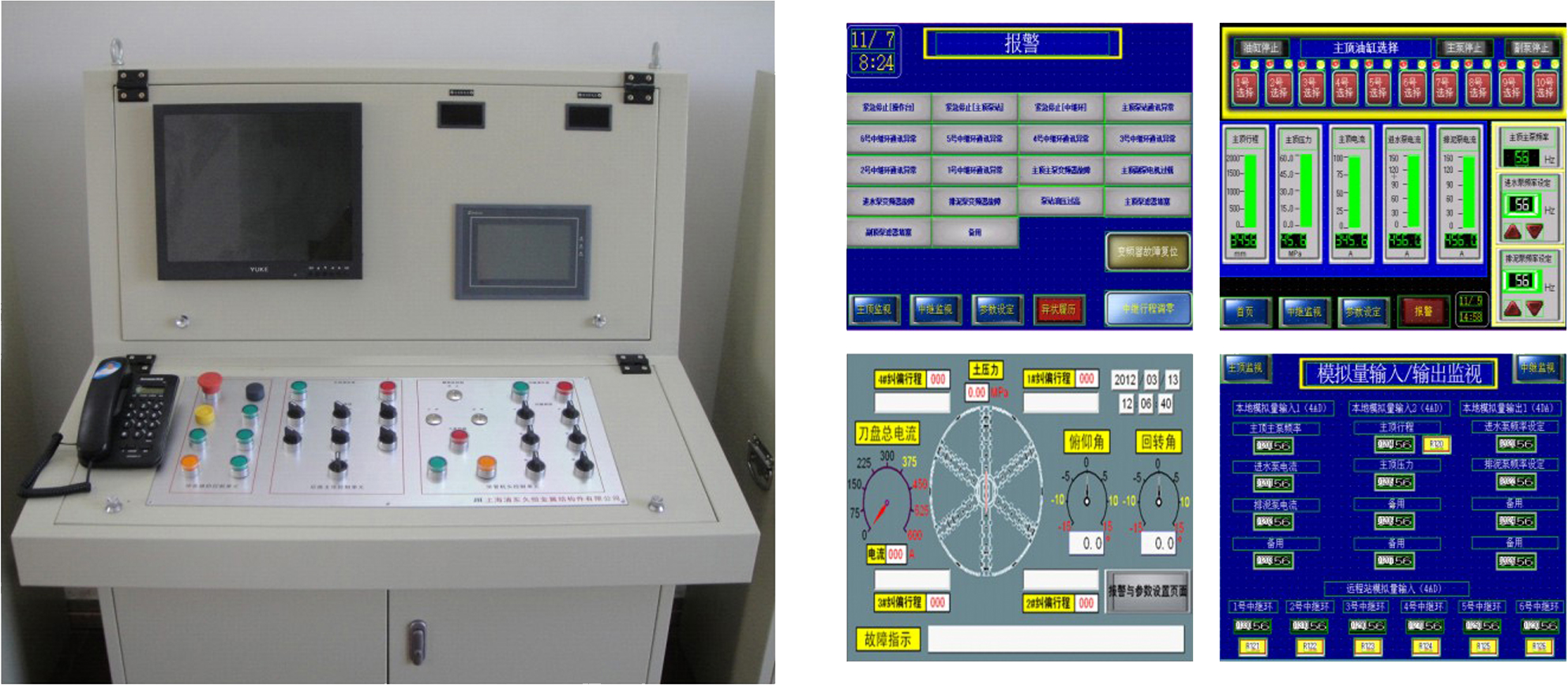

Control System
